DVI connector. Li'lBoard page.

Model number: LB7.16.

Description: A DVI-I dual connector, which can accept any other DVI standard (DVI-I single, DVI-D single and dual and DVI-A) plug, either from a video source or to a monitor.

Applications: Driving monitors or receiving video from computers or other sources.

Images:

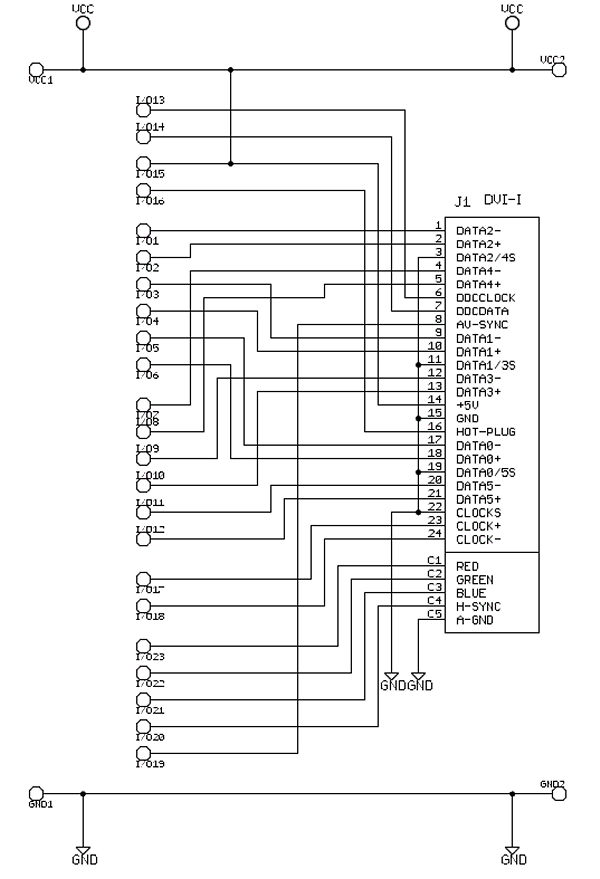

Schematic:

Click on image for full (PDF) schematic

SPI: N/A

Tenth centers: Yes?
