Ethernet transceiver: L'ilBoard6.06.
Tessellated Circuits: Home => New Home => Li'lBoard Categories => Interfaces => An interface board

Ethernet transceiver Li'lBoard page.

Model number: LB6.06.

Description: ENC28J60-based Ethernet interface. (In design.)

Applications: SPI to Ethernet.

Key components: ENC28J60

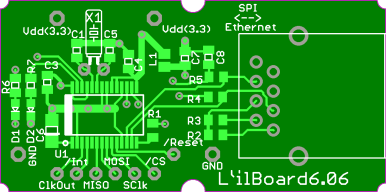

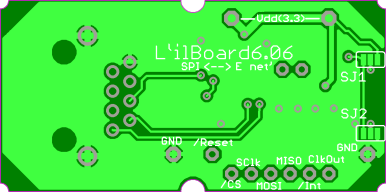

Images:

Schematic:

Click on image for full (PDF) schematic

Vin max: 3.6

Vin min: 3.1

SPI: Yes.

Tenth centers: Yes
